- General Information
- Manufacturer
- PANDUIT CORP
- Manufacturer Website Address
- http://www.panduit.com
- Brand Name
- Panduit
- Packaged Quantity
- 1
- Product Type
- Rack Frame

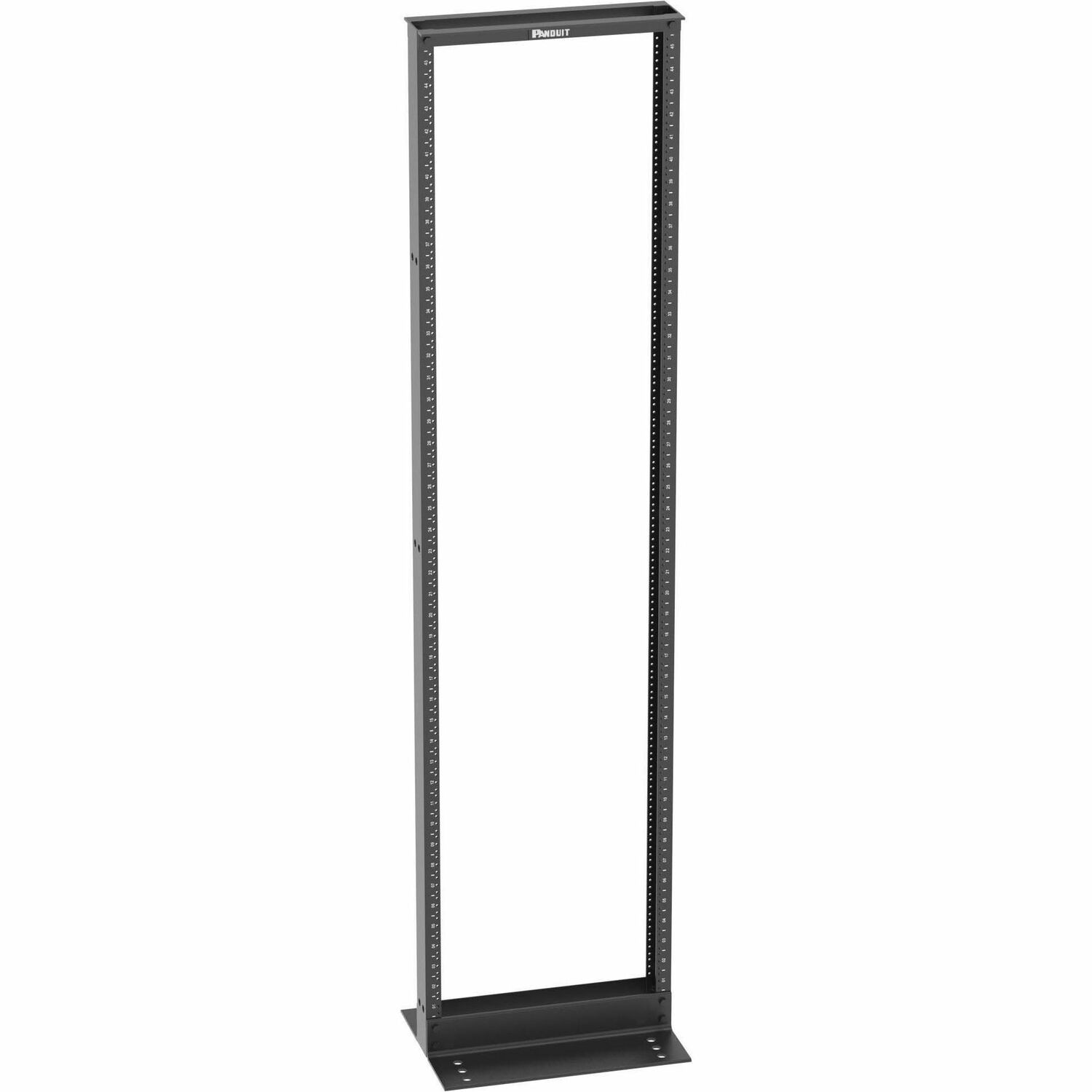

The 2-Post rack provides a reliable foundation for mounting telecommunications and data center equipment. The 84 inch tall rack accepts 23-inch wide equipment with mounting rails that have #12-24 EIA universal mounting hole spacing, and printed numbering from the bottom up. A range of cable managers and accessories work with the rack. The 3-inch deep channel rack is UL listed for 1,000 pounds and is made of extruded aluminum. The rack is 45 RU and black.
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Rack Type
- Open Frame
- Application/Usage
- Data Center
- Equipment
- Rack Post Quantity
- 2
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Product Material
- Aluminum
- Metal
- Maximum Weight Capacity
- 1000 lb
- Height
- 84"
- Width
- 24.3"
- Depth
- 15"
- Weight (Approximate)
- 31 lb
- Miscellaneous
- Package Contents
- 2-Post Rack, 45RU, #12-24 Threaded E-Rails, Aluminum, 23 in. Wide, Black
- 12 x 3/8-16 x 1" Hex Head Cap Screw
- 12 x 3/8-16 Hex Nuts
- 24 x 3/8" Paint Piercing Grounding Washer
- 1 x Tube of Anti-oxidizing Paste
- 24 x 12-24 x .5" Slotted Pan Head Steel Screws
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Restriction of Hazardous Substances (RoHS) 3
