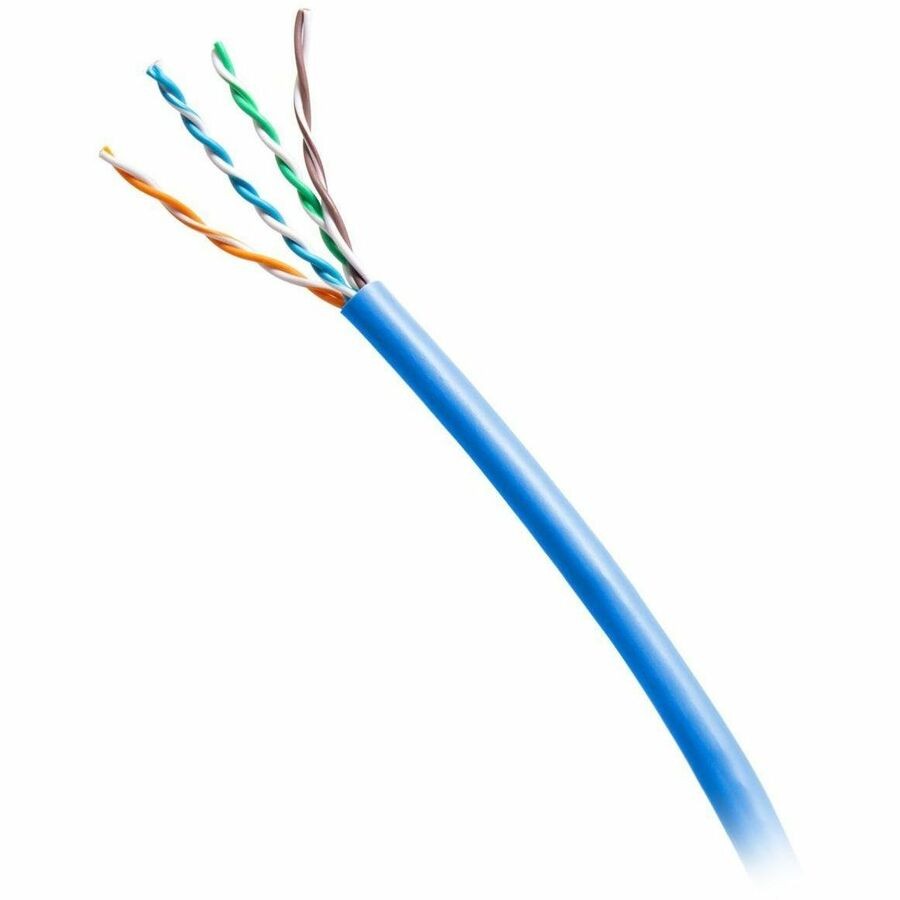

The C2G56031 TAA-Compliant Cat6 Bulk Cable is an excellent choice for customized horizontal network installations that demand high-speed and high-bandwidth performance. This cable is engineered to meet the ANSI/TIA-568.2-D (2018) standard, supporting a data frequency range up to 550 MHz, making it ideal for both commercial and residential networks where reliable and fast connectivity is essential. This bulk cable comes with a riser, CMR-rated jacket, ensuring compliance with safety standards for in-wall installations. Being TAA compliant, the C2G56031 is suitable for government and federal projects, meeting the necessary regulations for these environments. The cable is also packaged in an innovative, sustainable design that reduces plastic and cardboard waste by 40%. This slim packaging not only saves space but also offers a smooth cable-pulling experience, making installations quicker and more efficient, while contributing to a greener, more eco-friendly approach.
- General Information
- Manufacturer
- Legrand Group
- Manufacturer Website Address
- http://www.legrand.us
- Brand Name
- C2G
- Package Type
- Bulk
- Product Type
- Network Cable
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Cable Type
- Category 6
- Cable Length
- 1000 ft
- Cable Shielding Type
- Unshielded Twisted Pair (UTP)
- Connector Type on First End
- Bare Wire
- Connector on First End Details
- Barewire
- Connector Type on Second End
- Bare Wire
- Connector on Second End Details
- Barewire
- Shielding
- No
- Jacket Type
- CMR
- Riser
- Device Supported
- Network Device
- American Wire Gauge
- 23 AWG
- Number of Conductors
- 8
- Number of Pairs
- 4
- In-wall Installation Rating
- Yes
- Features
- Bendable
- Fire Resistant
- Flame Retardant
- Stranded
- Tangle-free
- Physical Characteristics
- Color Family
- Blue
- Product Color
- Blue
- Insulation Color
- Blue
- Blue/White Stripe
- Orange
- Orange/White Stripe
- Green
- White/Green Stripe
- White/Brown Stripe
- Brown
- Product Material
- Bare Copper
- Polyolefin
- Polyester Yarn
- Insulation Material
- Polyolefin
- Jacket Material
- Fire Resistant Polyvinyl Chloride (FR-PVC)
- Material Details
Conductor - Bare Copper,Polyolefin
Rip Cord - Polyester multi-yarn
- Weight (Approximate)
- 25.71 lb
- Miscellaneous
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Country of Origin
- China/Taiwan
- TAA Compliant
- Yes
