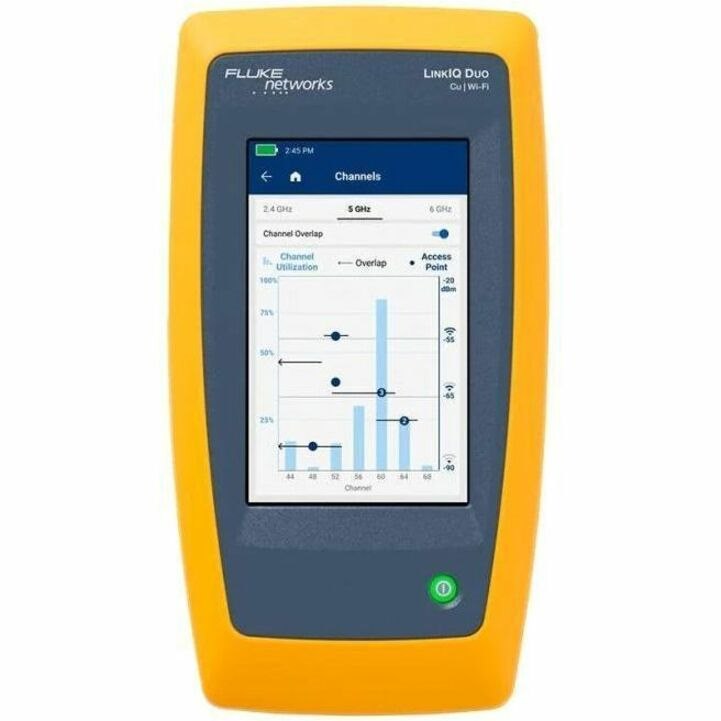

The LinkIQ™ Cable+Wi-Fi+Network Tester is the solution to verify cable performance up to 10G and solve network connectivity problems. LinkIQ validates cable performance using frequency-based measurements to calculate maximum bandwidth (10BASE-T to 10GBASE-T). LinkIQ also provides IPv4 and v6 ping; nearest switch diagnostics (IP address, name, port / VLAN number, and advertised data rates); Ethernet Alliance-certified Power over Ethernet testing (hardware/software negotiation and loaded voltage and power tests). Wi-Fi analysis to Wi-Fi 6E, including networks, channels, and access points. Additional features include cable toning, port blink, optional remote office locators, and the ability to manage results via LinkWare™ PC.
- General Information
- Manufacturer
- Fluke Networks
- Manufacturer Website Address
- http://www.flukenetworks.com
- Brand Name
- Fluke
- Product Line
- LinkIQ
- Packaged Quantity
- 1
- Product Type
- Testing Device
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Device Function
- Cable Testing
- Wireless Connectivity Testing
- Network Testing
- Network Troubleshoot
- Wiremap
- Cable Fault Testing
- Interfaces/Ports
- USB
- Yes
- Network (RJ-45)
- Yes
- Media & Performance
- Media Type Supported
- Twisted Pair
- Network & Communication
- Network Standard
- 10Base-T
- 10GBase-T
- Ethernet Technology
- 10 Gigabit Ethernet
- Battery Information
- Number of Batteries Supported
- 1
- Battery Size Supported
- AA
- Battery Built-in
- No
- Battery Included
- Yes
- Battery Rechargeable
- Yes
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Battery Weight
- 3.53 oz
- Miscellaneous
- Package Contents
- LinkIQ LIQ-DUO Testing Device
- Soft Carry Case
- LinkIQ Reference Guide
- Cat6A Patch Cable
- Power Supply Adapter Set
- Power Supply
- Remote ID #1
- Remote ID Holder
- Hang Strap
- RJ45 Coupler
- USB C Cable
- LinkIQ Safety Guide
- China RoHS Document
- Application/Usage
- Network
- Country of Origin
- United States
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- China Restriction of Hazardous Substances (China RoHS)
