1.25G Multi Mode 0.5km

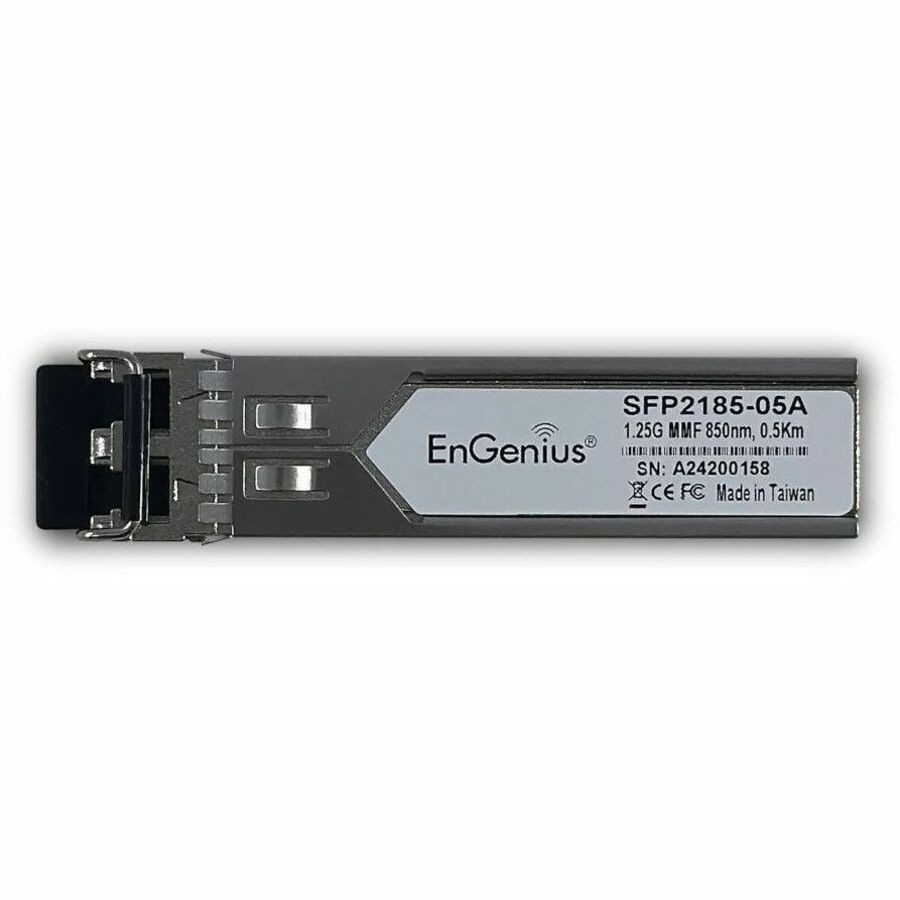

The EnGenius SFP2185-05is a high performance and cost-effective multi-mode SFP transceiver. Intended for use with Gigabit Ethernet, provides up to 1.25 Gbps serial optical data transfer rates on single duplex fiber core. It can reach a distance of up to 500 meters if used with 50-micron fiber cables.
- General Information
- Manufacturer
- EnGenius Technologies, Inc
- Manufacturer Website Address
- http://www.engeniustech.com
- Brand Name
- EnGenius
- Product Type
- SFP+
- Technical Information
- Application/Usage
- Data Networking
- Optical Network
- Interfaces/Ports
- Total Number of Ports
- 1
- Connector Type
- LC
- Interfaces/Ports Details
- 1 x LC Gigabit Ethernet Network
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Ethernet Technology
- Gigabit Ethernet
- Maximum Distance Supported
- 20 km
- Maximum Data Transfer Rate
- 1.25 Gbit/s
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 158°F (70°C)
- Power Description
- Input Voltage
- 3.15 V DC
- 3.45 V DC
- Physical Characteristics
- Form Factor
- Hot-swappable
- Height
- 0.5"
- Width
- 0.6"
- Weight (Approximate)
- 0.06 lb
- Miscellaneous
- Compatibility
MSA Compliant
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
