- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS On-Line
- Marketing Information

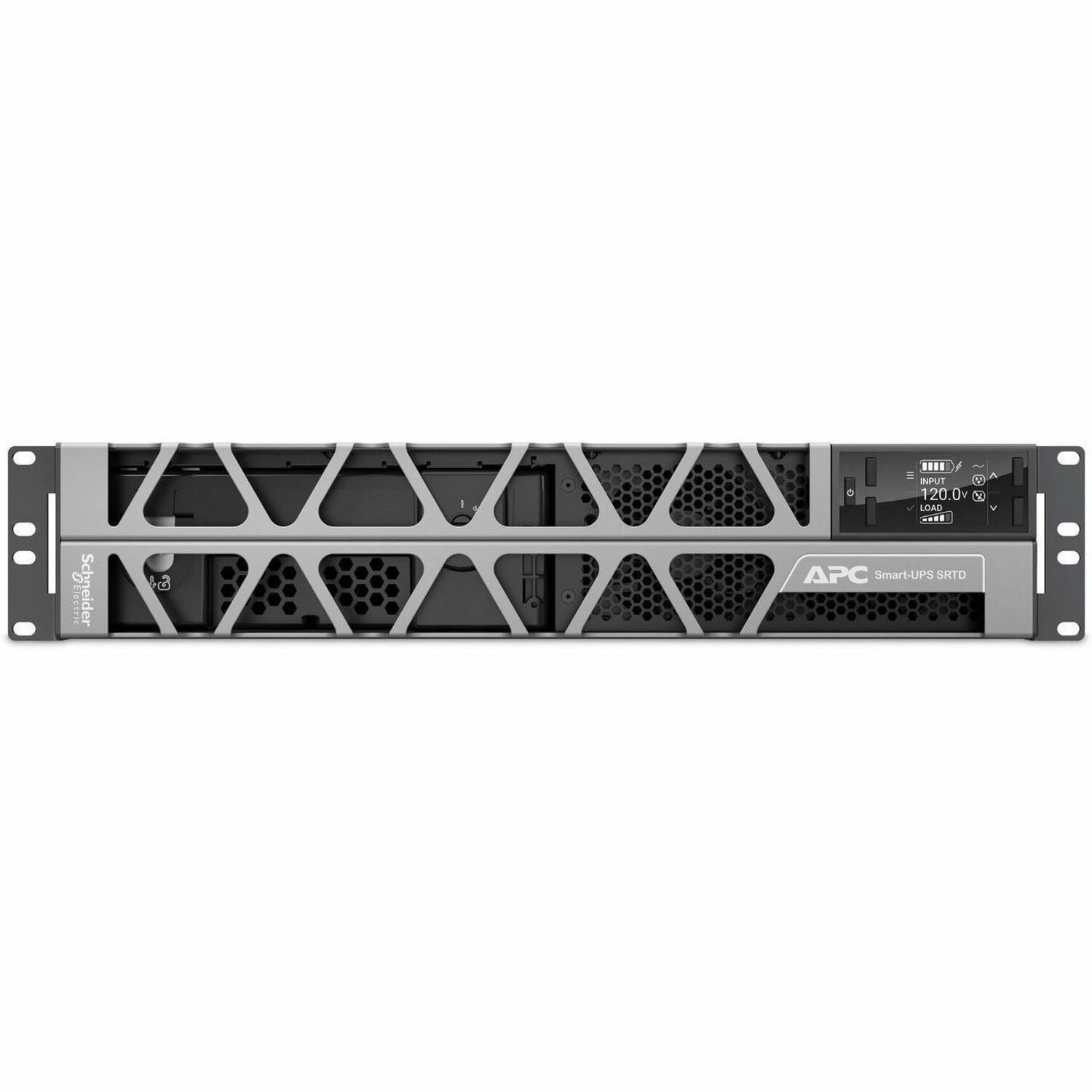

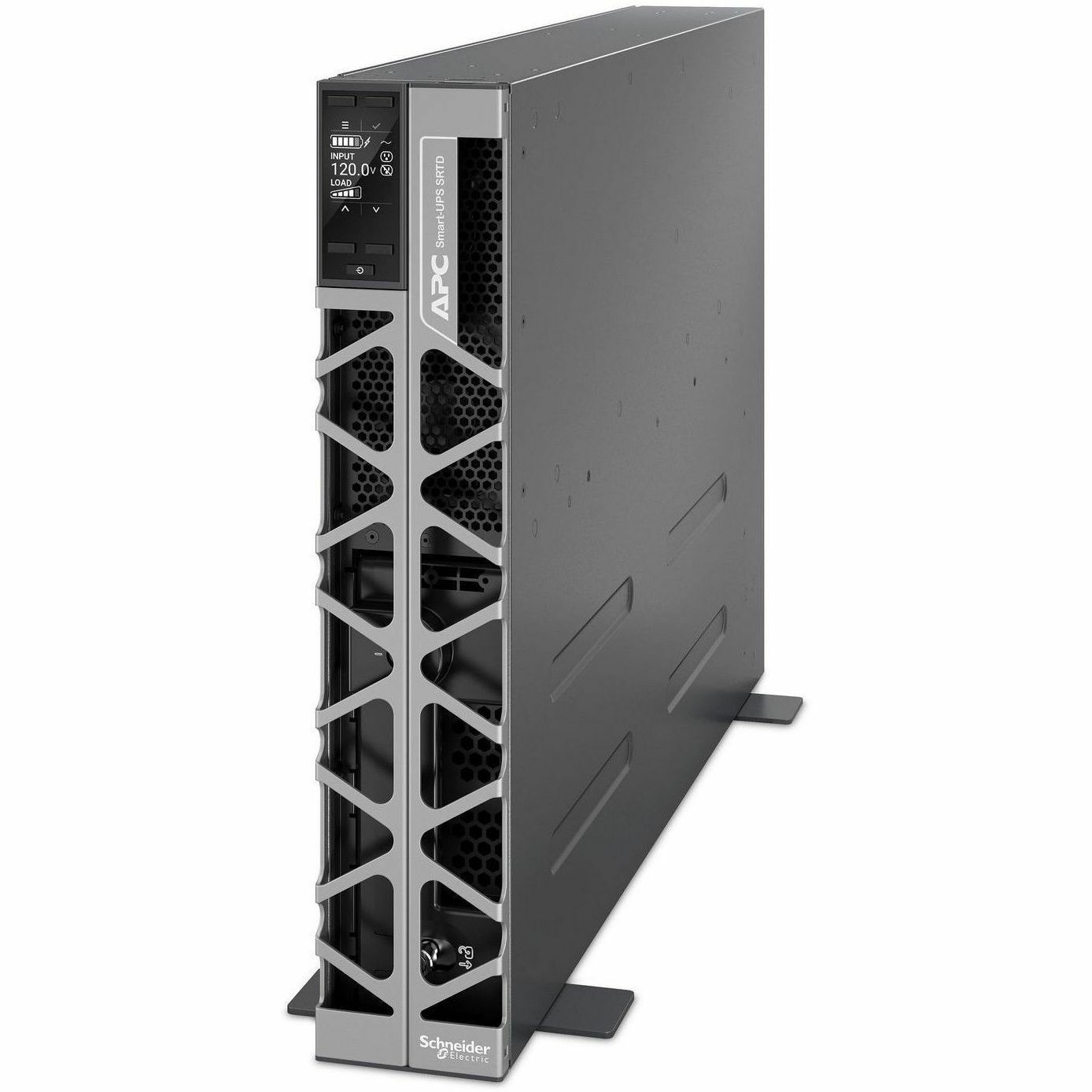

The SRTD3KR2-LA brings next gen power protection with the revolutionary multi-chemsitry battery support engineered for future proofing your UPS systems. This multi-chemistry UPS supports current VRLA technology with built-in upgrade paths to lithium-ion and emerging chemistries, ensuring long-term investment protection. It comes with embedded network management card for remote monitoring and management capabilities. Featuring 9 total outlets in a compact 2U footprint. This unit offers best-in-class efficiency at 94% that helps reduce power and heat loss for a better total cost of ownership. The embedded network card enable EcoStruxure IT that offers secure cloud connectivity, predictive analytics, and seamless integration with virtualization platforms. This unit is rackmount/tower convertible which makes it easy to deploy in different kinds of applications. The unit also supports upto 10 external battery packs for extended runtime. This UPS is truly sustainable with reduced plastic usage and a carbon footprint that is 25% less than its predecessor.
- Packaged Quantity
- 1 / Pack
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 36 Month
- Additional Warranty Information
- UPS: 36 month(s)
- Battery: 36 month(s)
- Technical Information
- Plug/Connector Type
- NEMA L5-30P
- Receptacle Type
- NEMA 5-20R
- NEMA L5-30R

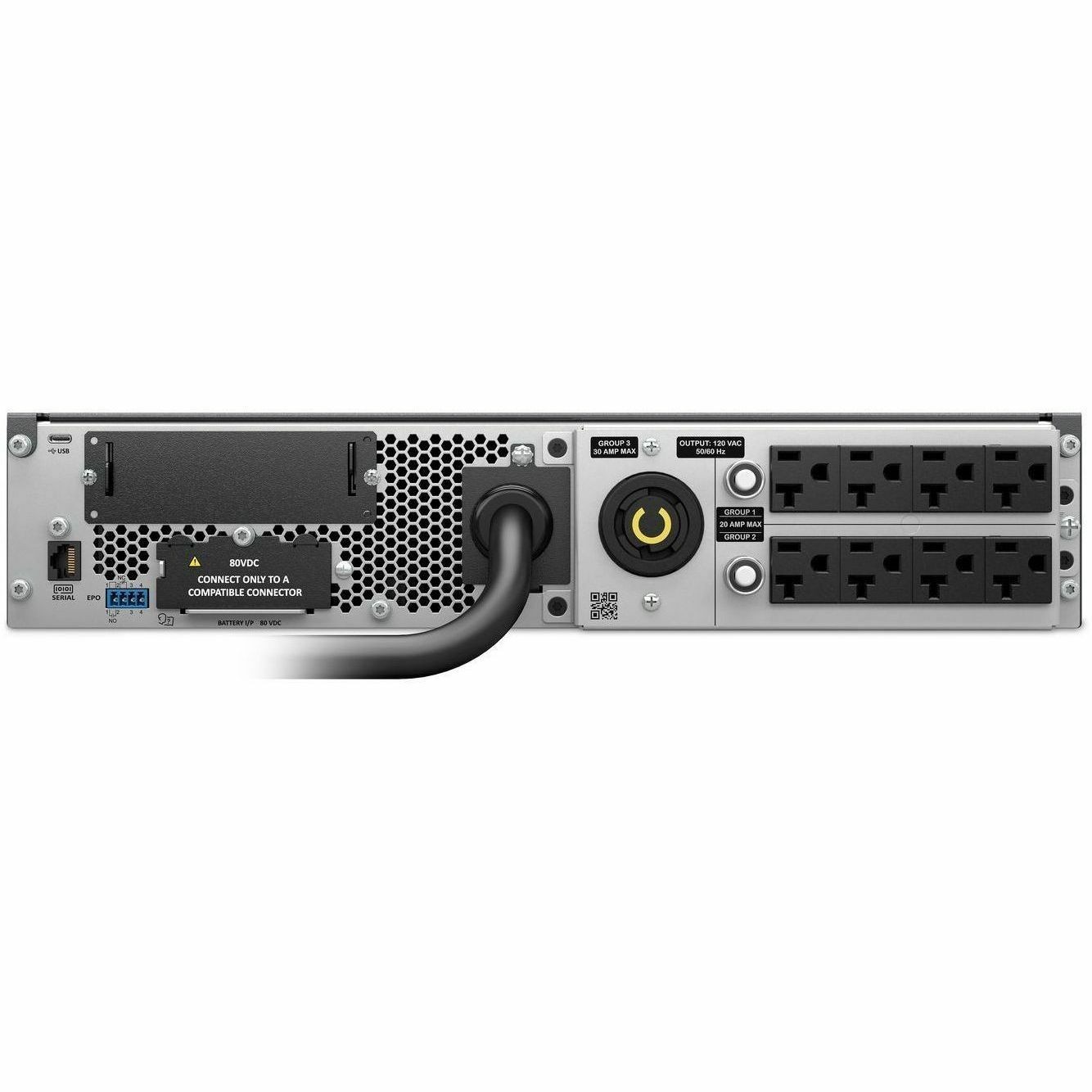

- Receptacle Detail
- 8 x NEMA 5-20R
- 1 x NEMA L5-30R
- Cord Length
- 7.87 ft
- Phase
- Single Phase
- Efficiency Detail
- 94% (AC Mode)
- Surge Suppression
- Yes
- Features
- Built-in Bypass Switch
- Audible/Visual Alarm
- Power Description
- Load Capacity (VA)
- 3000 VA
- Load Capacity (Watt)
- 2700 W
- Input Voltage
- 120 V AC
- Input Voltage Range
- 108 V AC - 150 V AC
- Input Current
- 24 A
- Output Voltage
- 120 V AC
- Input Frequency
- 40 Hz
- 70 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 405 J
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- SmartSlot
- Interfaces/Ports
- Serial Port
- Yes
- USB
- Yes
- EPO Port
- Yes
- Expansion Slot Detail
- 1 x Free slot
- Battery Information
- DC System Voltage
- 72 V DC
- Number of Batteries
- 1
- Battery Characteristics
- Valve-regulated
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 4.06 Minute
- Backup/Run Time (Half Load)
- 13.53 Minute
- Battery Life
- 3 Year
- 5 Year
- Typical Battery Recharge Time
- 3 Hour
- Hot Swappable
- Yes
- Replaceable Battery
- Yes
- Built-in Battery
- Yes
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Elevation
- 10000 ft
- Maximum Storage Elevation
- 49212.60 ft
- Sound Emission (A-Weighted)
- 52 dB(A)
- Thermal Dissipation
- 175.84 W
- Physical Characteristics
- Color Family
- Silver
- Product Color
- Silver Gray
- Height
- 3.39"
- Width
- 17.05"
- Depth
- 25.94"
- Rack Height
- 2U
- Form Factor
- Rack/Tower
- Compact
- Mounting Preference
- Lower
- Mounting Location
- Front/Horizontal/Vertical
- Weight (Approximate)
- 79.20 lb
- Miscellaneous
- Package Contents
- Smart-UPS Online UPS Rack & Tower 3000VA 120V VRLA
- Vertical Mounting Brackets
- EPO Terminal Block
- Rack Mounting Brackets
- Quick Installation Guide
- USB Cable
- Safety Guide
- Front Cover
- 4 Post Rail Kit
- Certifications & Standards
- cULus
- UL 1778 5th edition
- CSA C22.2 No 107.3
- FCC part 15 Subpart B class A
- IP20
- Energy Star
- Yes
- Energy Efficiency Certification
- ENERGY STAR 2.0
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Reach Compliance Date
- 2/1/2026
