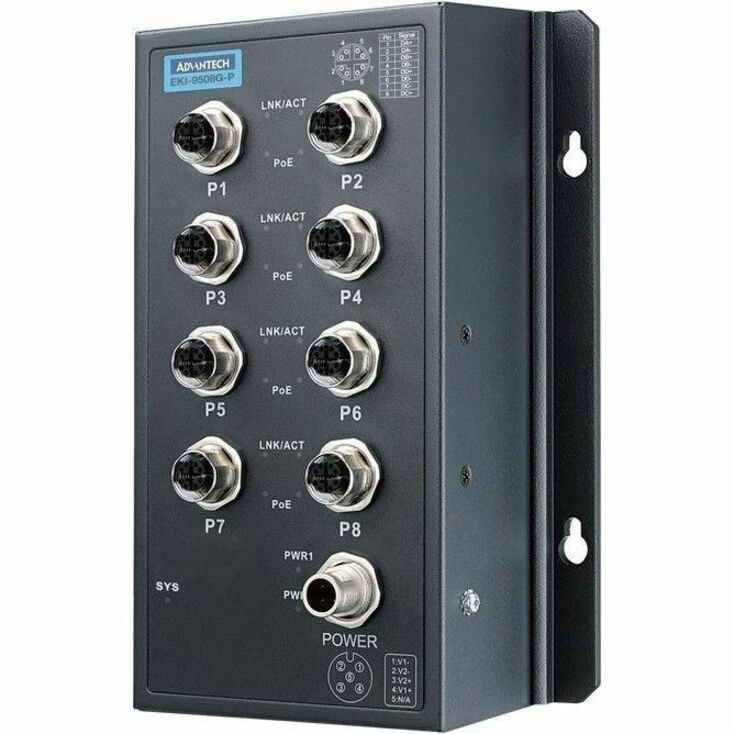

EKI-9500 series switch is designed for railway application, with rugged and high EMC performance. EKI-9500 series is the suitable networking solution for rolling stock and wayside applications. EKI-9500 series provide M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, to guarantee reliable operation against environmental disturbances, such as vibration and shock on train. EKI-9508G-PH & EKI-9508G-PL is a PoE Ethernet switch, it provides 8 x Gigabit Ethernet M12 X-code interface with IEEE802.3af/at PoE(Power Over Ethernet) function. PoE ports can total provide up to 90Watts power budget for P.D. devices (such as camera, IP-phone and wireless access point). EKI-9508G-PH/ PL features a "slim" design, can be easy deployed with its slender size and let network deployment more simple in crowded carriage/ cabinet.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- EKI-9500
- Product Type
- Ethernet Switch
- Technical Information
- Features
- IP50
- Interfaces/Ports
- Port/Expansion Slot Details
- 8 x M12 X-Coded 10/100/1000 BASE-T PoE+ Gigabit Ethernet Port
- Number of M12 Connectors
- 8
- Media & Performance
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- Maximum Data Transfer Rate
- 128 MB/s
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3af
- IEEE 802.3at
- Management & Protocols
- Manageable
- No
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 90 W
- Input Voltage
- 72 V DC
- 96 V DC
- 110 V DC
- Power Source
- DC
- Power Consumption
- 5 W
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- Wall Mountable
- Enclosure
- Height
- 7.1"
- Width
- 4.8"
- Depth
- 2.8"
- Weight (Approximate)
- 2.87 lb
- Miscellaneous
- Application/Usage
- Network
- Camera
- IP Phone
- Wireless Access Point
