- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- Modem/Wireless Router

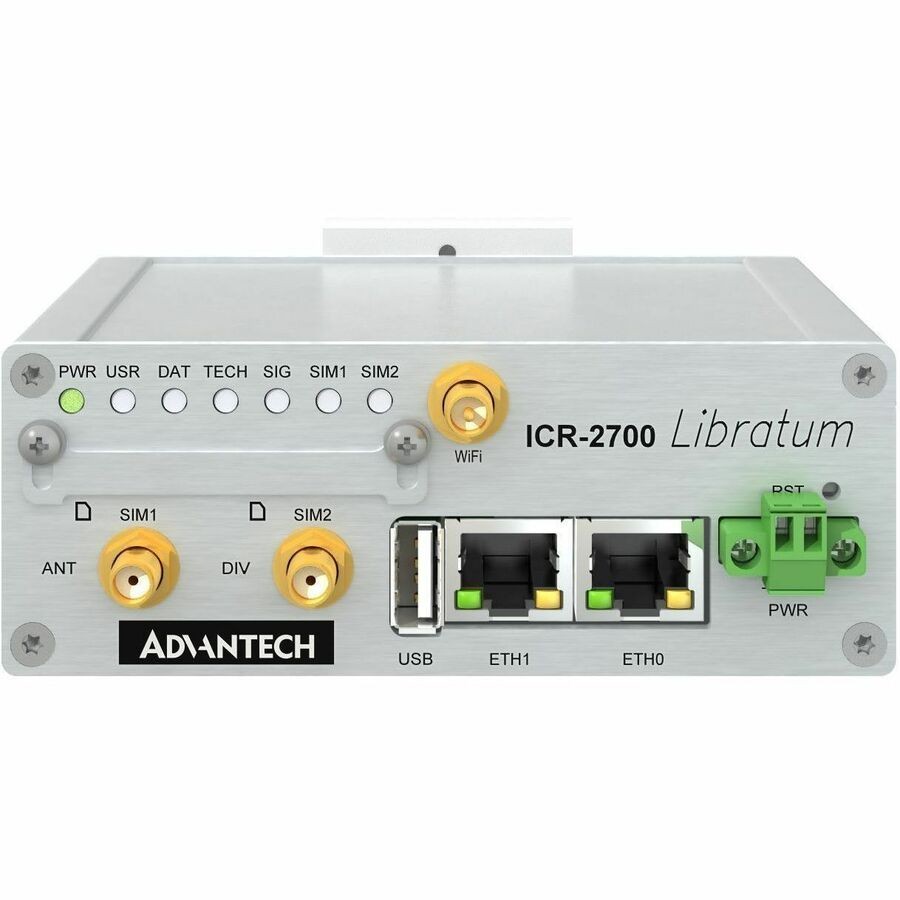

Ruggedized for industrial use with the most popular interfaces that include 2× Ethernet 10/100 ports with two independent LANs/IP addresses, 1× USB 2.0 host port, and 2× plate-covered SIM card holders for automatic failover to an alternate service provider. Optional built-in WiFi 802.11 ac, a,b,g,n with AP, Client, and Multirole modes are available.
On a project-based agreement, we can optionally add a TPM 2.0 chip (Trusted Platform Module) onboard, verifying router integrity to provide a trusted solution as a response to increasing cybersecurity demands. Cybersecurity resilience would also be increased by producing this router under a specific PN as S1 Router in compliance with the requirements of IEC 62443-4-2 SL1 (Level 1).
The router is powered by the well-known Linux-based Advantech´s operating system, ICR-OS's existing Router App library with apps already developed to enhance specific router functionalities, including industrial protocol conversions, dynamic protocols, and support of IoT platforms such as MS Azure, Cumulocity, and others.
Popular use cases in industrial and non-industrial environments include camera connection (streets/highways/parking etc.), various industrial automation and industry 4.0 applications, mobile signs and warning systems, wind turbines and solar power stations connection, measuring and monitoring systems in transportation, remote access for maintenance staff or electricity or petrol distribution.
The router is easy to manage using WebAccess/DMP a full-featured, cloud-based platform for device management, provisioning, and monitoring. It is ideal for mass deployment and VPN management, enabling secure remote access.
- Technical Information
- Processor Model
- ARM926EJ-S
- Processor Speed
- 600 MHz
- Standard Memory
- 128 MB
- Wireless Specifications
- Broadband Transmission Technology
- Ethernet
- Cellular
- Cellular Generation
- 4G
- Cellular Network Supported
- LTE 2100
- LTE 1800
- LTE 2600
- LTE 850
- LTE 900
- LTE 800
- LTE 700
- UMTS 2100
- UMTS 1800
- UMTS 900
- Cellular Data Connectivity Technology
- LTE
- HSPA+
- UMTS
- EDGE
- GPRS
- LTE Cat 4
- Total Wireless Transmission Speed
- 18.75 MB/s
- Encryption Standard
- DES
- 3DES
- AES
- MD5
- SHA
- Firewall Type
- NAT
- PAT
- Interfaces/Ports
- Total Number of Network Ports
- 2
- Number of Network (RJ-45) Ports
- 1
- USB
- Yes
- Number of Broadband (RJ-45) Ports
- 1
- USB Standard
- USB 2.0
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- VPN Supported
- Yes
- Multi-SIM Supported
- Yes
- Number of SIM Card Supported
- 2
- SIM Size Supported
- Mini
- Storage
- Flash Memory Capacity
- 4 GB
- Storage Media
- eMMC
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- DIN Rail Mountable
- Height
- 1.7"
- Width
- 4.5"
- Depth
- 3.2"
- Weight (Approximate)
- 9.17 oz
- Miscellaneous
- Package Contents
- ICR-2734 Modem/Wireless Router
- 2-pin PWR Connector
- DIN Clip
- Certifications & Standards
- EN 301 511
- EN 301 908-1
- EN 301 908-2
- EN 301 908-13
- EN 301 893
- EN 300 328
- EN 301 489-1
- EN 301 489-17
- EN 301 489-52
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-4
- EN 61000-4-5
- EN 61000-4-6
- EN 61000-4-11
- IEC 61000-6-2
- IEC 61000-6-3
- IEC 62368-1
- IEEE 802.3
- EN 18031-1
- E8
- CE
- UKCA
- EN 60529
- EN 60068-2-27
- EN 60068-2-64
- EN 60068-2-1
- EN 60068-2-2
- EN 60068-2-14
- EN 60068-2-30
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS) 3
