- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- B+B SmartWorx
- Product Line
- SQFlash
- Product Series
- 830
- Product Type
- Solid State Drive

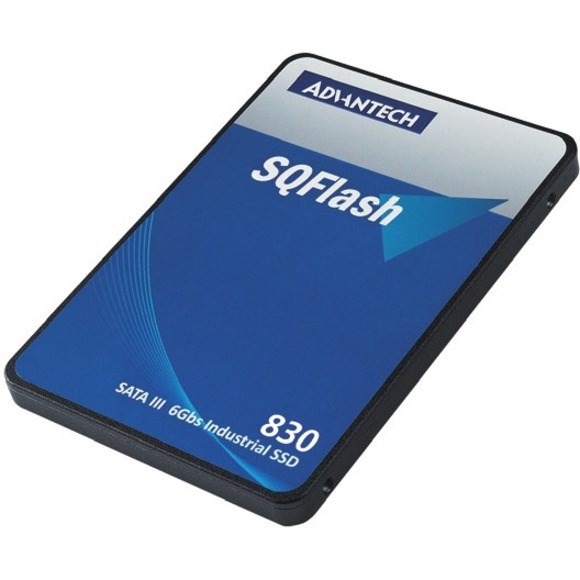

Advantech SQFlash 830 series 2.5" SATA-SSD (SQF-S25 830) delivers all the advantages of Flash Disk technology with the Serial ATA III (6.0Gb) interface, fully compliant with standard 2.5-inch form factor. The SATA SSD is based on a standard SATA 7-pin interface for data segment and 15-pin for power segment, designed to operate at a maximum operating frequency of 300MHz with 30MHz external crystal. Its capacity could provide a wide range up to 2TB. Moreover, it can reach up to 550MB/s read and 530MB/s write high performance based on Toggle 2.0 MLC flash (with 512MB DDR enabled and measured by CrystalDiskMark v3.0).
- Technical Information
- Storage Capacity
- 512 GB
- Drive Performance
- Maximum Read Transfer Rate
- 540 MB/s
- Maximum Write Transfer Rate
- 520 MB/s
- Network & Communication
- Wireless LAN
- No
- Interfaces/Ports
- Drive Interface
- SATA
- Drive Interface Standard
- SATA/600
- Physical Characteristics
- Drive Type
- Internal
- Form Factor
- 2.5"
- Height
- 0.3"
- Width
- 2.8"
- Depth
- 3.9"
- Miscellaneous
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
